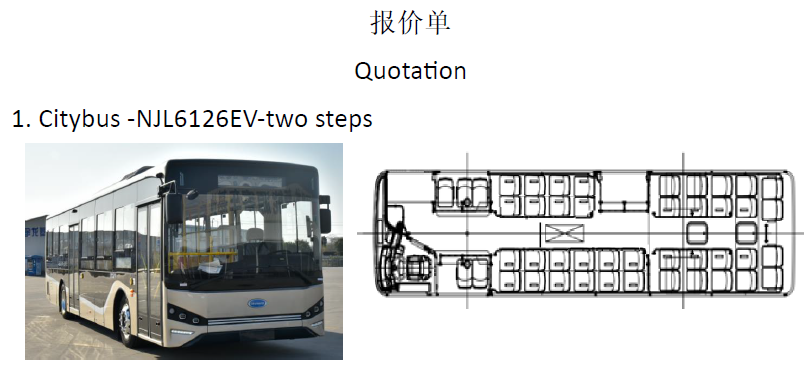

报价单
Quotation
1.
Citybus -NJL6126EV-two steps
NJL6126EV二级踏步系列 NJL6126EV Two-Step Series 外形尺寸（mm） Dimensions（mm) 11990×2550×3050,3250 制动距离（m） （V=30Km/h满载） Braking distance (m) (V=30Km/h full load) ≤9.5
车厢内高（mm） Internal height (mm) ≥2200
最大爬坡度（%） Maximum gradability (%) ≥18 轴距（mm） Wheelbase (mm) 6100 最小转弯直径（m） Minimum turning diameter (m) ≤22 前悬/后悬（mm） Front overhang/rear overhang (mm) 2680/3210 整备质量(Kg) Curb mass(Kg)
11700-12650（具体以公告为准） 11700-12650 (subject to announcement)
前轮距/后轮距（mm） Front wheel track/rear wheel track (mm) 2050.2097,2119/1840，1860,1882
最大总质量(Kg) G.V.W.(Kg) 18000 最小离地间隙（mm） Minimum ground clearance (mm) 116 额定乘员(人) Rated passenger capacity (persons)
95/10-47（具体以公告为准） 95/10-47 (subject to announcement) 接近角/离去角（°） Approach angle / departure angle (°) 7/7
标配座位数(个) Standard number of seats (pcs) 35+1 Can be customized according to customers Maximum 47seats
系统 System 项目 Project 标配供应商 Suppliers 备注 Remars
新能源 New Energy
电池 battary
CATL 422.9KWH ●
行驶里程 350kM Drive range 350KM
CATL 326.7KWH ○
行驶里程 250kM Drive range 250KM
skysouth 423.936KWH ○
行驶里程 350kM Drive range 350KM
skysouth 326.861KWH ○
行驶里程 250kM Drive range 250KM 整车控制器 VCU 南京金龙整车控制器 Nanjing Jinlong vehicle control unit ● 集成控制器 Integrated Control Unit 五合一系统 Five-in-One System ● 电机类型（额定功率） Motor type (rated power) 永磁同步电机 Permanent magnet synchronous motor ● 朗高2800 LEGO 2800 电机冷却系统 Motor cooling system 自清洁ATS电子冷却系统 Self-cleaning ATS electronic cooling system ●
铝制水箱 Aluminum water tank 水泵 Water pump ● 打气泵 Air compressor 电动打气泵总成 Electric air compressor assembly ● 无油活塞电动打气泵 Oil-free piston electric air compressor ○ 转向泵 Steering pump 永磁同步双源电动转向泵 Permanent magnet synchronous dual source electric steering pump ● 底盘 Chassis 前桥 Front Axle 前桥7.5T Front Axle 7.5T ● 汉德 HD ○ 东风、方盛 DF, Fangsheng 后桥 Rear Axle 后桥13T Rear Axle 13T ● 汉德 HD ○ 东风、方盛 DF, Fangsheng
免维护轮端 Maintenance-free wheel end
后桥免维护 Maintenance-free rear axle ●
后桥脂润滑、3年质保 Rear axle grease lubrication, 3-year warranty
前桥免维护 Maintenance-free front axle ○
主减状态 Main minus status
新能源专用主减 New energy dedicated main reducer ●
转向 Steering
国产液压助力转向 Domestic hydraulic power steering ● 悬架结构 Suspension Structure 6气囊空气悬架 6 Air bellow air suspension ●
悬架控制系统 Suspension Control System
机械高度阀控制系统 Mechanical Height Valve Control System ●
ECAS系统 ECAS system ○
行车制动 Driving Brake
前盘后鼓双回路气制动系统 Front disc barke and rear drum brake, dual circuit air brake system ● 前盘后盘双回路气制动系统 Front and rear disc brake, dual circuit air braking system ○ 放水阀 Drain valve
压差式自动放水阀 Differential pressure automatic water release valve ●
电控放水阀 Electronically controlled water release valve ○
储气筒 Air Storage Cylinder
钢制储气筒 Steel air storage cylinder ●
铝合金储气筒 Aluminum alloy air reservoir ○
驻车制动 Parking brake
机械手刹 Mechanical handbrake ●
电子手刹 Electronic handbrake ○
辅助制动 Auxiliary Brake
能量回收制动 Energy recovery brake ● 制动阀类 Brake Valves 制动主要阀类 Brake body valves ● 瑞立 Sorl ○ 克诺尔、WABCO Knorr, Wabco ABS ABS ● 科密 Kormee ○ WABCO 轮辋 Rims 铝合金轮辋 Aluminum alloy rim ● (8.25×22.5)普通轮辋 （8.25×22.5）Regular rim ○ 轮胎 Tires (275/70R22.5)无内胎子午线轮胎 （275/70R22.5）Tubeless radial tires ● 上海双钱 Doublecoin ○ 普利司通、韩泰、佳通、米其林、固特异、朝阳、万力 Bridgestone, Hankook, Giti, Michelin, Goodyear, Arisun, Wanli 胎压监测 Tire pressure monitoring ○
整车润滑系统 Complete vehicle lubrication system
集中润滑 Centralized lubrication ● 车身 Bodywork 车身结构Body Structure
承载式车身Monocoque body ● 铝合金车身 Aluminum alloy body ○
踏步 Steps 二级踏步 2-Step ● 外饰 Exterior Decoration
乘客门 Passenger door 前中双内摆门（内置摆臂） Front and middle double inward swing doors (built-in swing arm) ●
前内摆门、中塞拉门 Front inward swing door, middle sliding door ○
前风窗 Front windshield
夹胶全景玻璃 Laminated panoramic glass ●
后风窗 Rear windshield
钢化玻璃 Tempered glass ●
侧窗 Side windows
内置式推拉窗 Built-in sliding window ●
司机窗 Driver’s window
内置式推拉窗 Built-in sliding window ●
外后视镜 Outside rearview mirror
手动调节 Manual adjustment ●
电动调节 Electric adjustment ○
后视镜加热 Heating for rear mirror
电除霜 Electric defrost ○
玻璃颜色 Glass color
绿玻 Green glass ●
侧舱门 Side hatch
铝舱门 Aluminum hatch ●
舱门锁 Hatch lock
三角锁 Triangle lock ●
后舱门 Rear hatch
铝合金后舱门 Aluminum alloy rear hatch ●
流水槽 Water channel
一体式流水槽 One-piece water channel ●
油漆 Paint
素色漆 Plain paint ● 内饰 Interior Trims 冷风管道 Cold air duct
全景铝合金风道 Panoramic aluminum alloy air duct ● 标配不含LED双列长条灯 Standard specification does not include LED dual row strip lights
安全天窗 Roof escape hatch 2个带换气扇天窗 2 roof ecape hatch with ventilation fan ●
地板 Flooring
PVC地板 PVC flooring ●
竹胶板 Bamboo glue board ○ 地板革 Floor covering
石英砂阻燃地板革+黄色踏步 Quartz sand flame retardant floor covering + yellow step ● 标配不含“站立禁区”字样 Standard specification does not include the words “standing forbidden area”
石英砂阻燃地板革+黄色踏步（带站立禁区） Quartz sand flame retardant floor covering + yellow step (with standing forbidden area) ○
乘客座椅 Passenger seats
公交座椅 Bus seat ●
司机椅 Driver’s seat 气囊减震绒布司机椅 Airbag shock-absorbing velvet driver’s seat ● 头枕分离 Head restraint separation 气囊减震绒布司机椅 Airbag shock-absorbing velvet driver’s seat ○ 高靠背 High backrest
司机包围 Separating facility for driver’s compartment
铝合金 Aluminum alloy ●
扶手 Handrails
灰色钢管喷塑 Gray steel pipe spraying ● 无滚花 Without knurling
儿童标高线 Child elevation line ●
下单时提供客户需求尺寸 Provide the size required by the client when placing order
不锈钢扶手 Stainless steel handrail ○
铝合金扶手 Aluminum alloy handrail ○
下客门铃 Get-off request bell
2个 2 pcs ●
内后视镜 Interior rear view mirror
大方镜 Large square mirror ●
吊环 Ring 20个三角吊环 20 triangular rings ●
司机遮阳帘 Driver’s sun visor
司机前撑杆式遮阳帘 Driver’s front strut type sun visor ● 司机侧导轨卷帘式遮阳帘 Driver’s side rolling shutter type sun visor ● 内顶板 Interior roof panel
冲孔铝塑板 Perforated aluminum composite panel ●
PVC板 PVC panel ○
铝合金悬浮内顶 Aluminum alloy suspended inner top ○
侧围板 Side panels
PVC板 PVC panel ●
铝塑板 Aluminum composite panel ○
窗帘 Curtains
侧窗帘 Side curtains ○ 电器 Electrical equipment
CAN总线 CAN BUS
整车CAN总线 CAN BUS for entire bus ●
低压配电系统 Low voltage distribution system
普通配电盒 General distribution box ●
全铝防火智能低压配电系统 All-aluminum fireproof intelligent low-voltage power distribution system ○
雨刮器 Wiper
双摆雨刮器 Double swing wiper ●
蓄电池 Low voltage batteries 24V 2×100Ah ●
电子钟 Electronic Clock
带温度计 With thermometer ○
电脑报站器 Computerized bus stop annunciator
手动 Manual ●
GPS自动 GPS automatic ○
管理系统 Management System
新能源智能管理系统 New Energy Intelligent Management System ●
倒车蜂鸣器 Reverse buzzer
标配 Standard ● 行驶记录仪 Driving recorder 新国标记录仪 New national standard recorder ● 前路况+脚踏板+司机面部 Front road conditions + foot pedals + driver’s face ●
监控系统 Monitoring System 司机、前乘客门+整车 Driver, front passenger door + whole bus ● 中乘客门+倒车+独立显示 Center passenger door + reverse + independent display ● 远程监控终端 Remote Monitoring Terminal ●
安全辅助装置Safety assistance devices 坡道辅助（HAS）Hill assist system (HAS) ● AutoHold ●
倒车雷达 Reversing radar ○
360环视系统 360 Around View System ○
安全驾驶辅助系统 Safety Driving Assistance Systems ○
电子后视镜 Electronic Rearview Mirror ○
客流量统计系统 Passenger flow statistics system ○
便捷使用装置 Easy-to-use devices
快换充电插座 Quick change charging socket ●
一键启动 One-touch start ○
路牌 Line and destination signs
LED前、后路牌(16点阵，8字节) LED front and rear signs (16 dot matrix, 8 bytes) ●
LED侧路牌(16点阵，8字节) LED side sign (16 dot matrix, 8 bytes) ○
车内滚动屏(16点阵，8字节) Internal scrolling screen (16 dot matrix, 8 bytes) ○
空调 Air Conditioning 冷暖空调(3.2万大卡)+热管理 Heating and cooling air conditioning (32,000 calories) + thermal management ○ 无空调时需增加电池水冷机组 Battery water cooling unit is needed when there is no air conditioning.
单冷空调+热管理 Single cooling air conditioner + thermal management ● ketai
司机风扇 Driver’s Fan A柱 A pillar ● 选装电子后视镜时取消 Canceled when selecting electronic rearview mirrors.
除霜器 Defroster
高压电除霜器 High voltage electric defroster ● IP67
水暖除霜 Water heating defrost ○ 使用独立水暖时采用水暖除霜 Use water heating defrost when using independent plumbing. 暖风 Warm wind 独立水暖 Independent plumbing ○
扬声器 Speakers
椭圆形 Oval shape ●
视听系统 Audio-visual system MP3 ○ 预留喇叭 Reserved speaker USB 司机USB Driver USB ● 设施设备 Facilities and Equipment
随车工具 Tools supplied with bus
开沃汽车专用随车工具 Special tools supplied with Skywell bus ●
垃圾桶 Trash cans
不锈钢垃圾桶 Stainless steel trash can ○
杂物箱 Sundries box
不锈钢杂物箱 Stainless steel grocery bin ○
清洁设施 Cleaning facilities
吹灰装置 Ash blowing device ●
投币机 Coin machine
普通投币机 Regular coin machine ●
带电子锁投币机 Coin machine with electronic lock ○
带假币识别投币机 Coin machine with counterfeit currency identification ○
IC卡机 IC card machine
智能IC卡机 Intelligent IC card machine ○
安全锤 Safety Hammer 防盗报警安全锤7只(带钢丝绳)+司机侧防盗报警安全锤1只（不带钢丝绳） Anti-theft alarm safety hammer 7 pcs (with wirerope) + Driver’s side anti-theft alarm safety hammer 1 pcs (without wirerope) ●
消防装置 Fire fighting devices 2个4Kg干粉灭火器 2 x 4Kg dry powder fire extinguishers ●
电池舱自动灭火装置 Automatic fire extinguishing device for battery compartment ●
高压舱自动灭火装置 Automatic fire extinguishing device for high-voltage compartment ●
电池箱内灭火装置 Fire extinguishing device inside battery box ○
轮椅辅助装置 Wheelchair assistance devices N/A
车内安全装置 Safety devices inside bus
客舱喷淋系统 Passenger compartment sprinkler system ○
易燃易挥发物检测 Flammable and volatile material detection ○
车载测温仪 On-board thermometer ○ 备注：“●”表示标配，“○”表示选配 Note: “●” means standard, “○” means optional 报价（此价格不含认证费用） quotation (This price does not include certification fees) CIF caldera 美元 元 CIF caldera dollar
CATL 422.9KWH
US$175,100.00
CATL 326.7KWH
US$158,200.00
skysouth 423.936KWH
US$157,600.00
skysouth 326.861KWH
US$144,600.00
商务条件/Commercial terms 车款30%预付款，70%发运前支付；For the products: 30% advance payment, 70% to be paid before the delivery. 质保/Warranty 整车2年或12万公里，先到为准；2 years or 120,000km which comes first for Comple vehicle 电池质保8年或50万公里；8 years or 500,000km which comes first for battery
电机电控质保3年20万公里；3 years or 200,000km which comes first for motor and controller
有效期/Validity of the quotation 报价日期2024年7月12日，有效期自报价日期之后30天; Quotation date is 12 July. 2024, the validity is 30 days from the date of quotation; 如汇率波动超过2%，卖方有权相应调整价格； The seller reserves the right to adjust the price if the fluctuation of the exchange rate more than 2%; 最终订单配置需与卖方确认，卖方保留针对技术配置的最终解释权利； The specification should be confirmed with the seller before the order to be placed; the seller Reserves the right of final interpretation of the technical specification.
2．Citybus-NJL6126EV-low entry
NJL6126EV低入口系列 NJL6126EV Low Entry Series 外形尺寸（mm） Dimensions（mm) 11990×2550×3320 制动距离（m） （V=30Km/h满载） Braking distance (m) (V=30Km/h full load) ≤9.5
车厢内高（mm） Internal height (mm) ≥2200
最大爬坡度（%） Maximum gradability (%) ≥18
轴距（mm） Wheelbase (mm) 6050
最小转弯直径（m） Minimum turning diameter (m) ≤22
前悬/后悬（mm） Front overhang/rear overhang (mm) 2680/3260
整备质量(Kg) Curb mass(Kg) 11700-13000（具体以公告为准） 11700-13000 (subject to announcement)
前轮距/后轮距（mm） Front wheel track/rear wheel track (mm) 2050.2097,2119/1840，1860,1882
最大总质量(Kg) G.V.W.(Kg) 18000
最小离地间隙（mm） Minimum ground clearance (mm) 116
额定乘员(人) Rated passenger capacity (persons) 89/20-42（具体以公告为准） 89/20-42 (subject to announcement)
接近角/离去角（°） Approach angle/departure angle (°) 7/7
标配座位数(个) Standard number of seats (pcs) 30+1 Can be customized according to customers Maximum 42 seats
系统 System
项目 Project 标配供应商 Suppliers
备注 Remarks 新能源 New Energy
电池 battary
CATL 422.9KWH ●
行驶里程 350kM Drive range 350KM
CATL 326.7KWH ○
行驶里程 250kM Drive range 250KM
skysouth 423.936KWH ○
行驶里程 350kM Drive range 350KM
skysouth 326.861KWH ○
行驶里程 250kM Drive range 250KM
整车控制器 VCU
南京金龙整车控制器 Nanjing Jinlong vehicle control unit ●
集成控制器 Integrated Control Unit
五合一系统 Five-in-One System ●
电机类型（额定功率） Motor type (rated power)
永磁同步电机 Permanent magnet synchronous motor ● 朗高2800 LEGO 2800
电机冷却系统 Motor cooling system
自清洁ATS电子冷却系统 Self-cleaning ATS electronic cooling system ●
铝制水箱 Aluminum water tank
水泵 Water pump ●
打气泵 Air compressor
电动打气泵总成 Electric air compressor assembly ●
无油活塞电动打气泵 Oil-free piston electric air compressor ○
转向泵 Steering pump
永磁同步双源电动转向泵 Permanent magnet synchronous dual source electric steering pump ● 底盘 Chassis 前桥 Front Axle 前桥7.5T Front Axle 7.5T ● 汉德 HD ○ 东风、方盛 DF, Fangsheng 后桥 Rear Axle 后桥13T Rear Axle 13T ● 汉德 HD
○ 东风、方盛 DF, Fangsheng
免维护轮端 Maintenance-free wheel end
后桥免维护 Maintenance-free rear axle ●
后桥脂润滑、3年质保 Rear axle grease lubrication, 3-year warranty
前桥免维护 Maintenance-free front axle ○
主减状态 Main minus status
新能源专用主减 New energy dedicated main reducer ●
转向 Steering
国产液压助力转向 Domestic hydraulic power steering ● 悬架结构 Suspension Structure 6气囊空气悬架 6 Air bellow air suspension ●
悬架控制系统 Suspension Control System
机械高度阀控制系统 Mechanical Height Valve Control System ●
ECAS系统 ECAS system ○
行车制动 Driving Brake
前盘后鼓双回路气制动系统 Front disc barke and rear drum brake, dual circuit air brake system ● 前盘后盘双回路气制动系统 Front and rear disc brake, dual circuit air braking system ○ 放水阀 Drain valve
压差式自动放水阀 Differential pressure automatic water release valve ●
电控放水阀 Electronically controlled water release valve ○
储气筒 Air Storage Cylinder
钢制储气筒 Steel air storage cylinder ●
铝合金储气筒 Aluminum alloy air reservoir ○
驻车制动 Parking brake
机械手刹 Mechanical handbrake ●
电子手刹 Electronic handbrake ○
辅助制动 Auxiliary Brake
能量回收制动 Energy recovery brake ● 制动阀类 Brake Valves 制动主要阀类 Brake body valves ● 瑞立 Sorl ○ 克诺尔、WABCO Knorr, Wabco ABS ABS ● 科密 Kormee ○ WABCO
轮辋 Rims 铝合金轮辋 Aluminum alloy rim ● (8.25×22.5)普通轮辋 （8.25×22.5）Regular rim ○ 轮胎 Tires (275/70R22.5)无内胎子午线轮胎 （275/70R22.5）Tubeless radial tires ● 上海双钱 Doublecoin ○ 普利司通、韩泰、佳通、米其林、固特异、朝阳、万力 Bridgestone, Hankook, Giti, Michelin, Goodyear, Arisun, Wanli 胎压监测 Tire pressure monitoring ○ 整车润滑系统 Complete vehicle lubrication system
集中润滑 Centralized lubrication ● 车身 Bodywork 车身结构Body Structure
承载式车身Monocoque body ● 铝合金车身 Aluminum alloy body ○
踏步 Steps
低入口 low entry ● 可选装高顶 Optional high roof 外饰 Exterior Decoration
乘客门 Passenger door 前中双内摆门（内置摆臂） Front and middle double inward swing doors (built-in swing arm) ● 前内摆门、中塞拉门 Front inward swing door, middle sliding door ○
前风窗 Front windshield
夹胶全景玻璃 Laminated panoramic glass ●
后风窗 Rear windshield
钢化玻璃 Tempered glass ●
侧窗 Side windows
内置式推拉窗 Built-in sliding window ●
司机窗 Driver’s window
内置式推拉窗 Built-in sliding window ●
外后视镜 Outside rearview mirror
手动调节 Manual adjustment ●
电动调节 Electric adjustment ○
后视镜加热 Heating for rear mirror
电除霜 Electric defrost ○
玻璃颜色 Glass color
绿玻 Green glass ●
侧舱门 Side hatch
铝舱门 Aluminum hatch ●
舱门锁 Hatch lock
三角锁 Triangle lock ●
后舱门 Rear hatch
铝合金后舱门 Aluminum alloy rear hatch ●
流水槽 Water channel
一体式流水槽 One-piece water channel ●
油漆 Paint
素色漆 Plain paint ● 内饰 Interior Trims 冷风管道 Cold air duct
全景铝合金风道 Panoramic aluminum alloy air duct ● 标配不含LED双列长条灯 Standard specification does not include LED dual row strip lights
安全天窗 Roof escape hatch 2个带换气扇天窗 2 roof ecape hatch with ventilation fan ●
地板 Flooring
PVC地板 PVC flooring ●
竹胶板 Bamboo glue board ○ 地板革 Floor covering 石英砂阻燃地板革+黄色地板革 Quartz sand flame retardant floor covering + yellow floor covering ● 标配不含“站立禁区”字样 Standard specification does not include the words “standing forbidden area” 石英砂阻燃地板革+黄色地板革（带站立禁区） Quartz sand flame retardant floor covering + yellow floor covering (with standing forbidden area) ○
乘客座椅 Passenger seats
公交座椅 Bus seat ●
司机椅 Driver’s seat 气囊减震绒布司机椅 Airbag shock-absorbing velvet driver’s seat ● 头枕分离 Head restraint separation 气囊减震绒布司机椅 Airbag shock-absorbing velvet driver’s seat ○ 高靠背 High backrest
司机包围 Separating facility for driver’s compartment
铝合金 Aluminum alloy ●
扶手 Handrails
灰色钢管喷塑 Gray steel pipe spraying ● 无滚花 Without knurling
儿童标高线 Child elevation line ●
下单时提供客户需求尺寸 Provide the size required by the client when placing order
不锈钢扶手 Stainless steel handrail ○
铝合金扶手 Aluminum alloy handrail ○
下客门铃 Get-off request bell
2个 2 pcs ●
内后视镜 Interior rear view mirror
大方镜 Large square mirror ● 建议删除 Suggest to remove
吊环 Ring 20个三角吊环 20 triangular rings ●
司机遮阳帘 Driver’s sun visor
司机前撑杆式遮阳帘 Driver’s front strut type sun visor ● 司机侧导轨卷帘式遮阳帘 Driver’s side rolling shutter type sun visor ● 内顶板 Interior roof panel
冲孔铝塑板 Perforated aluminum composite panel ●
PVC板 PVC panel ○ 铝合金悬浮内顶 Aluminum alloy suspended inner top ○
侧围板 Side panels
PVC板 PVC panel ●
铝塑板 Aluminum composite panel ○
窗帘 Curtains
侧窗帘 Side curtains ○ 电器 Electrical equipment
CAN总线 CAN BUS
整车CAN总线 CAN BUS for entire bus ●
低压配电系统 Low voltage distribution system
普通配电盒 General distribution box ●
全铝防火智能低压配电系统 All-aluminum fireproof intelligent low-voltage power distribution system ○
雨刮器 Wiper
双摆雨刮器 Double swing wiper ●
蓄电池 Low voltage batteries 24V 2×100Ah ●
电子钟 Electronic Clock
带温度计 With thermometer ○
电脑报站器 Computerized bus stop annunciator
手动 Manual ●
GPS自动 GPS automatic ○
管理系统 Management System
新能源智能管理系统 New Energy Intelligent Management System ●
倒车蜂鸣器 Reverse buzzer
标配 Standard ● 行驶记录仪 Driving recorder 新国标记录仪 New national standard recorder ● 前路况+脚踏板+司机面部 Front road conditions + foot pedals + driver’s face ●
监控系统 Monitoring System 司机、前乘客门+整车 Driver, front passenger door + whole bus ● 中乘客门+倒车+独立显示 Center passenger door + reverse + independent display ● 远程监控终端 Remote Monitoring Terminal ●
安全辅助装置Safety assistance devices 坡道辅助（HAS）Hill assist system (HAS) ● AutoHold ●
倒车雷达 Reversing radar ○
360环视系统 360 Around View System ○
安全驾驶辅助系统 Safety Driving Assistance Systems ○
电子后视镜 Electronic Rearview Mirror ○
客流量统计系统 Passenger flow statistics system ○
便捷使用装置 Easy-to-use devices
快换充电插座 Quick change charging socket ●
一键启动 One-touch start ○
路牌 Line and destination signs
LED前、后路牌(16点阵，8字节) LED front and rear signs (16 dot matrix, 8 bytes) ●
LED侧路牌(16点阵，8字节) LED side sign (16 dot matrix, 8 bytes) ○
车内滚动屏(16点阵，8字节) Internal scrolling screen (16 dot matrix, 8 bytes) ○
空调 Air Conditioning 冷暖空调(3.2万大卡)+热管理 Heating and cooling air conditioning (32,000 calories) + thermal management ○ 无空调时需增加电池水冷机组 Battery water cooling unit is needed when there is no air conditioning.
单冷空调+热管理 Single cooling air conditioner + thermal management ● ketai
司机风扇 Driver’s Fan A柱 A pillar ● 选装电子后视镜时取消 Canceled when selecting electronic rearview mirrors.
除霜器 Defroster
高压电除霜器 High voltage electric defroster ● IP67
水暖除霜 Water heating defrost ○ 使用独立水暖时采用水暖除霜 Use water heating defrost when using independent plumbing. 暖风 Warm wind 独立水暖 Independent plumbing ○
扬声器 Speakers
椭圆形 Oval shape ●
视听系统 Audio-visual system MP3 ○ 预留喇叭 Reserved speaker USB 司机USB Driver USB ● 设施设备 Facilities and Equipment
随车工具 Tools supplied with bus
开沃汽车专用随车工具 Special tools supplied with Skywell bus ●
垃圾桶 Trash cans
不锈钢垃圾桶 Stainless steel trash can ○
杂物箱 Sundries box
不锈钢杂物箱 Stainless steel grocery bin ○
清洁设施 Cleaning facilities
吹灰装置 Ash blowing device ●
投币机 Coin machine
普通投币机 Regular coin machine ●
带电子锁投币机 Coin machine with electronic lock ○
带假币识别投币机 Coin machine with counterfeit currency identification ○
IC卡机 IC card machine
智能IC卡机 Intelligent IC card machine ○
安全锤 Safety Hammer 防盗报警安全锤7只(带钢丝绳)+司机侧防盗报警安全锤1只（不带钢丝绳） Anti-theft alarm safety hammer 7 pcs (with wirerope) + Driver’s side anti-theft alarm safety hammer 1 pcs (without wirerope) ●
消防装置 Fire fighting devices 2个4Kg干粉灭火器 2 x 4Kg dry powder fire extinguishers ●
电池舱自动灭火装置 Automatic fire extinguishing device for battery compartment ●
高压舱自动灭火装置 Automatic fire extinguishing device for high-voltage compartment ●
电池箱内灭火装置 Fire extinguishing device inside battery box ○
轮椅辅助装置 Wheelchair assistance devices
手动翻转踏步 Manually flip wheelchair ramps ●
车内安全装置 Safety devices inside bus
客舱喷淋系统 Passenger compartment sprinkler system ○
易燃易挥发物检测 Flammable and volatile material detection ○
车载测温仪 On-board thermometer ○
备注：“●”表示标配，“○”表示选配 Note: “●” means standard, “○” means optional 报价（此价格不含认证费用） quotation (This price does not include certification fees) CIF caldera 美元 元 CIF caldera dollar
CATL 422.9KWH
CATL 326.7KWH
skysouth 423.936KWH
skysouth 326.861KWH
商务条件/Commercial terms 车款30%预付款，70%发运前支付；For the products: 30% advance payment, 70% to be paid before the delivery. 质保/Warranty 整车2年或12万公里，先到为准；2 years or 120,000km which comes first for Comple vehicle 电池质保8年或50万公里；8 years or 500,000km which comes first for battery 电机电控质保3年20万公里；3 years or 200,000km which comes first for motor and controller
有效期/Validity of the quotation 报价日期2024年7月12日，有效期自报价日期之后30天; Quotation date is 12 July. 2024, the validity is 30 days from the date of quotation; 如汇率波动超过2%，卖方有权相应调整价格； The seller reserves the right to adjust the price if the fluctuation of the exchange rate more than 2%; 最终订单配置需与卖方确认，卖方保留针对技术配置的最终解释权利； The specification should be confirmed with the seller before the order to be placed; the seller Reserves the right of final interpretation of the technical specification.
